ISO9001 Synthetic Fiberglass SMT Pallet 5-40mm Thickness

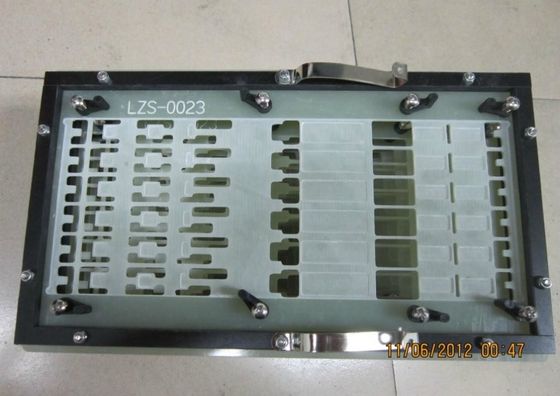

Large Image : ISO9001 Synthetic Fiberglass SMT Pallet 5-40mm Thickness

Product Details:

Place of Origin:	CHINA
Brand Name:	UA
Certification:	ISO9001, SGS, CTI, ROHS
Model Number:	CUSTOMIZED

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Carton Packaging
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	500 pcs per day

Contact Now

Detailed Product Description

Material:	Synthetic Fiberglass Reinforced Sheet	Application:	High Temperature, PCB Assembly
Color:	Black,grey,blue	Thickness:	5-40 Mm
Life Cycles:	>16,000 Times	Working Temperature:	250°C~280°C
Supply Ability:	500 Piece/Pieces Per Day	Size:	As Per Drawings
Highlight:	Synthetic Fiberglass SMT Pallet , 40mm Synthetic Fiberglass SMT Pallet , ISO9001 5mm SMT solder pallet

High Temperature Synthetic Fiberglass For SMT Solder Pallet

Generally, it is performed in the order of reflow soldering to wave soldering. At the wave soldering process, it is necessary to apply solder only to soldering part, with the components mounted by reflow soldering being protected. Solder pallet is the tool used in the process of wave soldering. It has pockets to protect the pre-mounted components and has through-holes to apply solder only to soldering spots.

Advantages

- Price: Produced by our own pallet materials and CNC machines, we can provide the most competitive price to our clients.

- Quality: With rich production experience, our pallets have been widely approved by our clients both in China and foreign countries.

The precision can be controled within -/+0.02mm

- Lead time: 2-3 days for samples, 6-8 days for bulk order.

- Professional sales team: Our sales engineer know well about material & machining. You can discuss any engineering issue with us freely.

We can also design pallets as per client's requirement. Below information are necessary for the pallet design.

1. 2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets

2. Gerber file of PCB bare board+ Loaded PCB sample(PCB board with electronic components)

Characteristics

Low thermal conductivity, resistance, high temperature resistance,can work continuous temperature 280C, antistatic, light weight, chemical corrosion resistance, etc.

Applicaton

Mould, plastic mold, heat press insulation board, electrical insulation material, high temperature and high pressure insulation parts for machinery, etc.

EXCELLENT DURABILITY
Excellent durability against repetitive soldering of more than 16000-times.

EXCELLENT CHEMICAL RESISTANCE
Excellent chemical resistance against soluble flux or pallet cleaner.

EXCELLENT MECHANICAL STRENGTH
Excellent mechanical strength for fine machining.

Samples

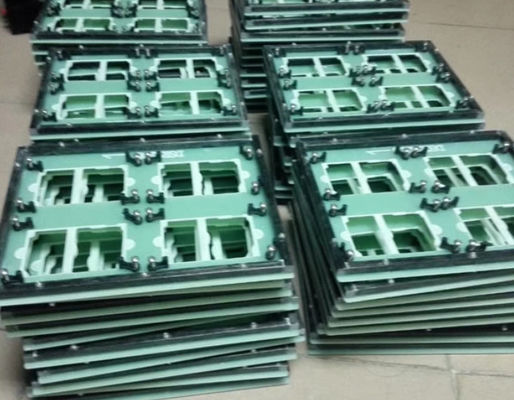

ISO9001 Synthetic Fiberglass SMT Pallet 5-40mm Thickness 0

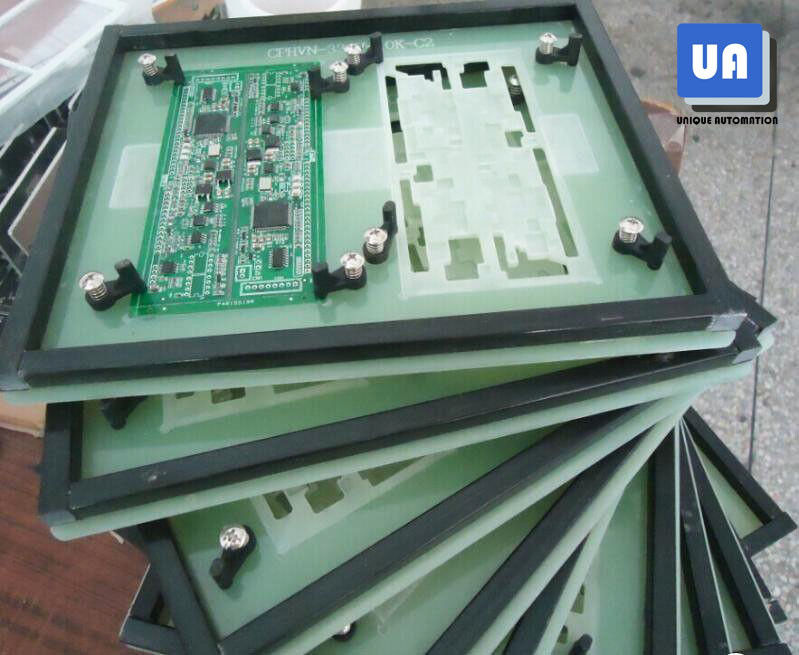

ISO9001 Synthetic Fiberglass SMT Pallet 5-40mm Thickness 1

Packing & Delivery

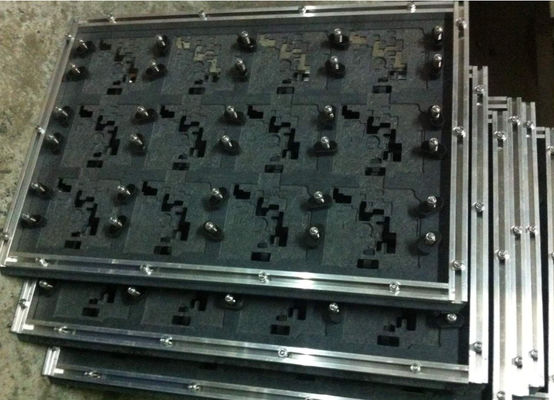

ISO9001 Synthetic Fiberglass SMT Pallet 5-40mm Thickness 2
