| PCB Thickness: | 0.5-5mm | Transport Height: | 900±30 Mm |
|---|---|---|---|
| Squeegee Speed: | 5-200 Mm/sec | Squeegee Pressure: | 0-16kg Motor Control |
| Printing Accuracy: | ±0.025mm | Cycle Time: | < 9s |
| Product Changeover: | <4min | Control Method: | PC Control |
| Machine Weight: | About 980kg | CCD FOV: | 8*6 Mm |
| Highlight: | AC220V 2D Solder Paste Stencil Printer,1500mm/S Solder Paste Stencil Printer,1500mm/S pcb stencil printer |
||
Solder Paste Printer

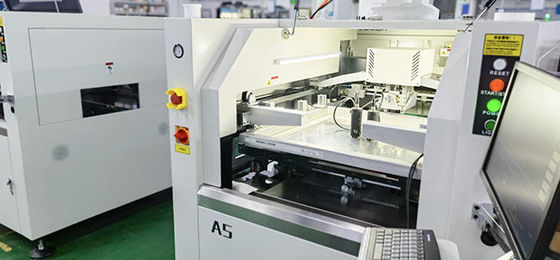

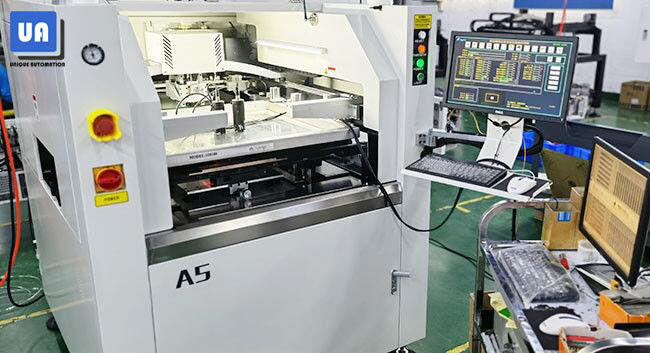

SMT Machine Solder Paste Printer Full-Automatic PCB Screen Printer Stencil printer A5
Function Feature

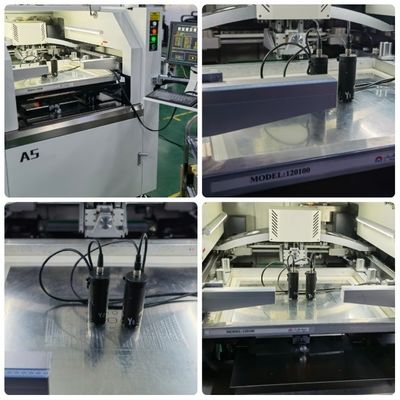

1, Special Platform Calibration System

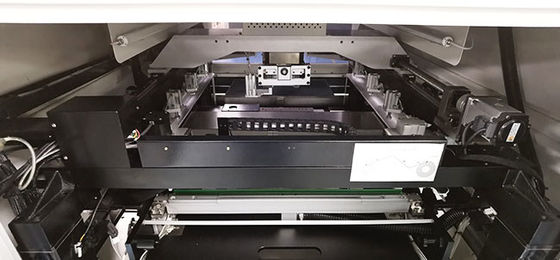

2, Image And Optical System
Use a high precision digital camera.
3, Operation Interface
Chinese/English selective interface.Using Windows 7/10 operation interface,and easy to learn for user,
with good man-machine interactive function.

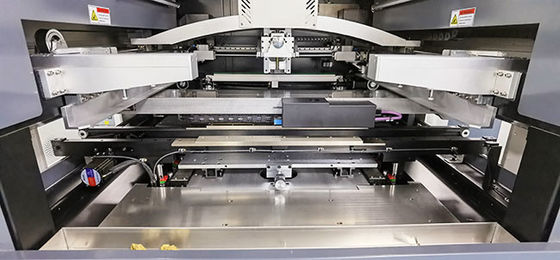

4, Scraper system
Arch bridge type suspending direct- connected scraper side clamp and PCB support vacuum
5, Cleaning system
Stencil cleaning system is automatic and effective. Three options of Dry cleaning,
Wet cleaning and Vacuum cleaning can be selected to use, both individually and multiply.
6, 2D Solder Paste Printing Quality Test And Analysis
This is standard configuration, Ensure the quality of product printing.This feature can quickly detect for printing offset,
insufficient paste,missing and bridge and other defects.
Specification
| Model | A5 |
| Screen Frames | Min Size : 370*370 mm |
| Max Size : 737*737 mm | |
| Thickness : 20-40 mm | |
| PCB Min Size | 50*50 mm |
| PCB Max Size | 400*340 mm |
| PCB Thickness | 0.4-6 mm |
| PCB Warpage | < 1% |
| Transport Height | 900±50 mm |
| Transport Direction | Optional |
| Transport Speed | Max 1500mm/S programmable |
| Board Location PCB | Support System : Magnetic Pin/Up-dowm Table Adjusted / Supportblock by Hand |
| Clamping System : Side Clamping, Vacuum Nozzle | |
| Print head | Two Independent Motorised Printheads |
| Squeegee Speed | 6-200 mm/sec |
| Squeegee Pressure | 0-15kg |
| Squeegee Type | Stainless Steel ( Strandard ), Plastic |
| stencil Separation Speed | 0.1-20 mm/sec Progammable |
| Cleaning System | Dry, Wet, Vaccum ( Programmable ) |
| Table Adjustment Ranges | X: ±10mm; Y:±10mm |
| CCD FOV | 8*6 mm |
| Solder Paste Inspection | 2D Inspection Standard |
| Machine | |
| Repeat Posistion Accuracy | ± 0.01mm |
| Printing Accuracy | ± 0.025mm |
| Cycle Time | <9s ( Exclude Printing & Cleaning ) |
| Product Changeover | <4Min |
| Air Required | 4.5 ~ 6 kg /cm2 |
| Power Input | AC : 220±10%, 50/60HZ 3kw |
| Control Method | PC Control |
| Machine Dimension | 1220*1375*1500mm ( L*W*H ) |
| Machine Weight | about 1000kg |

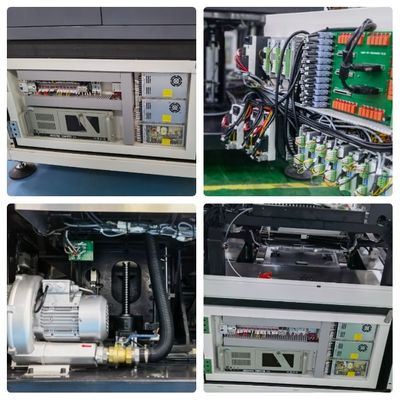

Assembly workshop
Testing before delivery
Company Profile
Unique Automation (referred to as "UA") is a High-speed developing enterprise of High Precision
SMT Equipment manufacturer, which specializes in automation equipment for electronics industry.
Unique Automation (UA) was founded in 2010 with headquarter in Shenzhen and its manufacturing facilities
of more than 5,000 square meters.With over 11 years’ experience in design and manufacturing of SMT
equipment, UA is one of the most professional solution providers in the SMT equipment market.
We specialized in wave soldering machine, reflow oven, SMT automatic vision paste printer, SMT laser
marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines, fixtures/pallets, SMT
consumables and etc, and has exported these cost effective and high quality equipment to more than
30 countries in Europe, America, Middle-east, Southeast Asia, and Africa. We will spare no effort in providing
SMT equipment to our customers with the aim of “Quality First, Customer Priority” as we have been
doing for the last 11 years.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
`
Q7: Why choose UA ?
